![Peonylighting 500W](/uploads/s/074f65da6b8046758d7679fbbe8ec08b.webp)

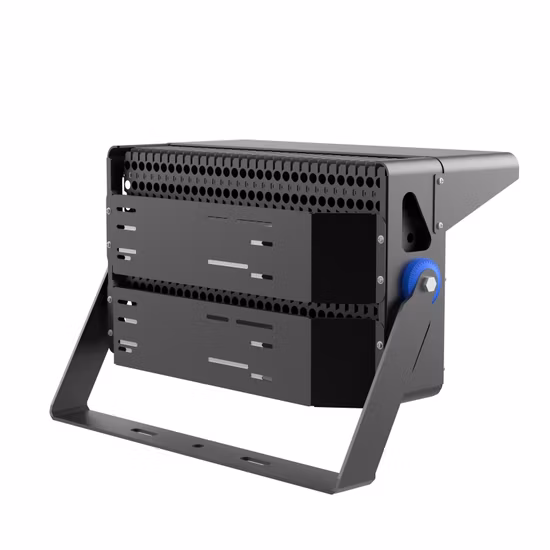

Peonylighting 500W
Basic Info.
Model NO. | PL-SD-067 |
Certification | CCC, CE, CQC, C-tick, EMC, Energy Star, ETL, FCC, FDA, GOST, GS, LVD, PSE, REACH, RoHS, SAA, SASO, VDE, TUV ENEC CB Iram |
Operating Voltage | AC100-277V |
Input Voltage | AC90-305V |
LED Chips Brand | Lumileds 3030SMD |
Transport Package | Carton |
Specification | 665x885x811mm |
Trademark | Peonylighting |
Origin | China |
HS Code | 9405429000 |
Production Capacity | 50000 Pieces Per Month |
Product Description

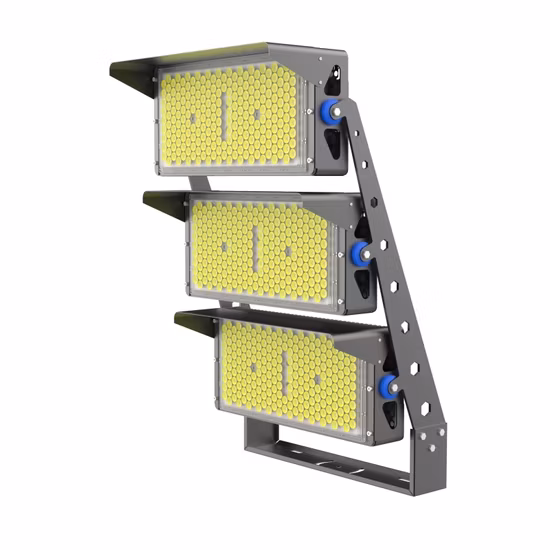

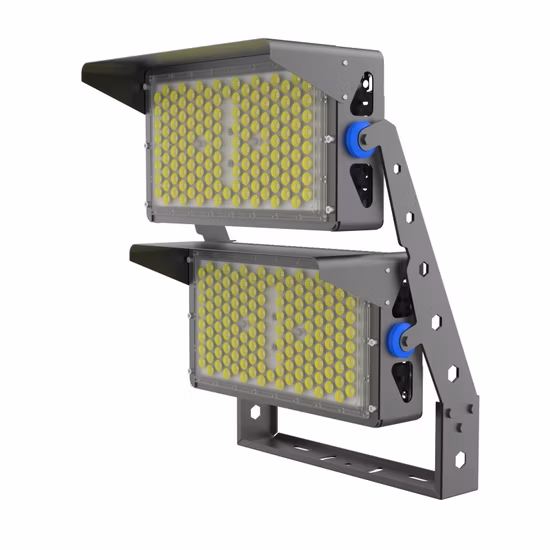

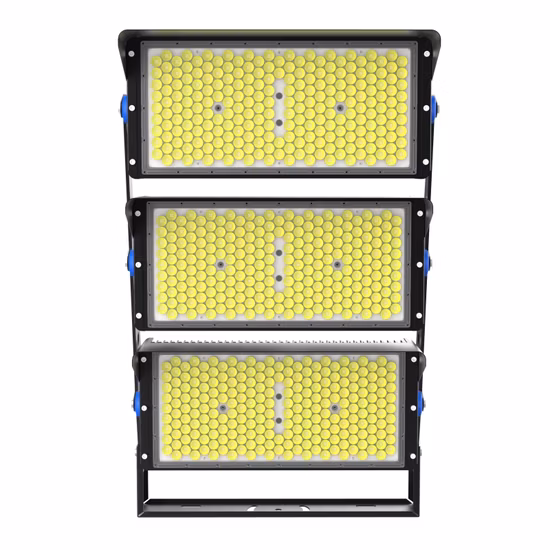

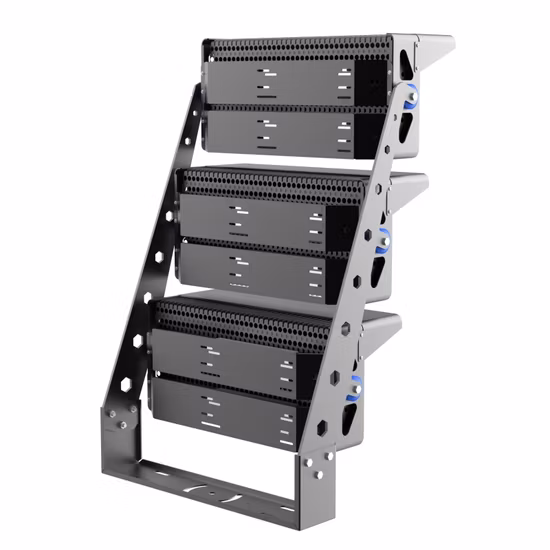

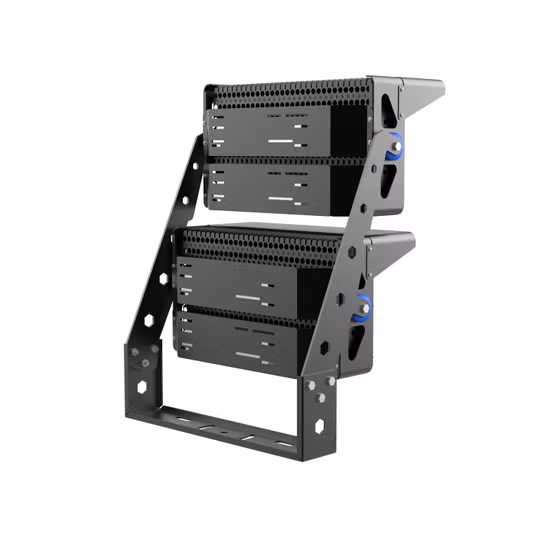

Peonylighting 500W-1000W-1500W LED stadium sport flood light
Advantages of LED stadium sports light
- The best adjustable flood light for project lighting, sport field, high masts, warehouse, display rack, tunnel, football field etc.
- The constant current driver, very good on anti-surge, stable performance, 5 years warranty.
- Use the new generation lumileds smd as Light Source, with the features of high brightness, low light decay, long lifespan.
- Provide a variety of beam angle options for different application scenarios.
- All sets of IES files support, Dialux program support.
- Waterproof IP66, outdoor use freely.
- Anti-glare cover and explosion-proof net can be added.
Applicable for Building external wall,square,garden,warehouse,tunnel,etc. Below are some cases.
Datasheet
Model | PL-SD-067 | ||
Power | 500W | 1000W | 1500W |
Dimension(mm) | 556X316X249 | 565X647X249 | 567X926X249 |
Luminous Flux | 140-150lm/w | ||
LED Source | 136PCS Lumileds 5050 | 272PCS Lumileds 5050 | 408PCS Lumileds 5050 |
Input Voltage | AC100~277V 50~60Hz | ||
Power factor | > 0.95 | ||
THD | <20% (Typical : 10%) | ||
Color Temperature | 2700-6500K | ||
Color Rendering Index | CRI>70 | ||
IP Rating&IK | IP65&IK08 | ||
Beam Angle | 30°/45°/60° | ||
Housing Color | Black | ||
Options | 1-10V/DALI/Timming | ||
Working Life | >50,000 hours | ||
Warranty | 5 years | ||
Storage Environment | -40ºC~+85ºC, 10%~90% RH | ||
Working Environment | -40ºC~+50ºC, 20%~90% RH | ||
Body & Shade Material | Aluminum housing & Annular lens | ||
Where Can Use | Applicable for Building external wall,square,project lighting, sport field, high masts, warehouse, display rack, tunnel, football field etc. |
Advantage:
2.stable quality transformer,over voltage/current protection3.Built-in driver with wire connector, easy install4.High brightness, energy saving & environmentally friendly products
Maintenance:
1,The power must be cut off before maintaining.
2,Cleaning the glass of the product in regular time to ensure the good efficiency.
3,Cleaning the housing and radiator in regular time to ensure the good performance of heat sinking.
4,Can use the screwdriver open the cover and take out of the driver to change a new.And connection of the wires of AC driver please follow below:Brown to connect "L",Blue to connect "N",Yellow to connect "",And the red or white wires of DC connect the positive pole of driver,and the black wire connect the negative pole of driver.and don't mix the positive pole and negative pole.
5,Please take measures of lightning protection, and ensure the Input voltage which is stable.
6,Pls put the lamp under the dry, ventilated and clean circumstance, and clean and maintain regularly.7,Don't disassemble by yourself, avoid the electric shock as there is high voltage inside the lamp.
8 Don't upside down when installing or lighting the lamp
9,Please ask the qualified professional person for help.
Application:
Widely used in household, hotel room ,show room, corridor, hotel lobby, public place of entertainment andso on
Our Service:1>. Fast deilvery: For samples 3 working day. For bulk order: 5-12working days. We produce over 2000PCS LED spotlight /day.2>. Good Quality control: We have our own LEDs Encapsulation room, we produce LED drivers by ourselves. All 5 years warranty with TUV, cUL, ETL, Energy-star, PSE, BV CE certificates.3>. Mature OEM Service: With 8 years LED lighting manufacture.
We can suppy FREE laser print label, color box design etc.FAQ
Q: Can we get a sample to test?
A : Yes , we can provide sample to you for testing, just please inform the specific models , size , power , color temperature.
Q: What's the delivery time?
A : Around 3~5 days after get payment for samples, 7-10 working days after get deposit for mass order.
Q: Do you have the technic supports ?
A: Of course, after you receive the lamps, if you have any questions, please tell us, We can try my best to help you .
Q: What's the payment term?
A : We accept TT , Western Union,L/C. For samples , full payment is required upon order confirmation. For mass orders, 30% deposit upon order confirmation and 70% balance before shippment.Please read the instruction carefully before you use the product.We keep the right of final explanation for the instruction and the product.The product will keep updating continues.And sorry for the no notice for the updating.sure the Input voltage which is stable.
Q1. Can I have a sample order for led light?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A:Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity more than
Q3. Do you have any MOQ limit for led light order?
A: Low MOQ, 1pc for sample checking is available
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Q5. How to proceed an order for led light?
A: Firstly let us know your requirements or application.Secondly We quote according to your requirements or our suggestions.Thirdly customer confirms the samples and places deposit for formal order.Fourthly We arrange the production.
Q6. Is it OK to print my logo on led light product?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q7: Do you offer guarantee for the products?
A: Yes, we offer 5 years warranty to our products.
Q8: How to deal with the faulty?
A: Firstly, Our products are produced in strict quality control system and the defective rate will be lessthan 0.2%.Secondly, during the guarantee period, we will send new lights with new order for small quantity. Fordefective batch products, we will repair them and resend them to you or we can discuss the solution including re-call according to real situation.
